PRODUCT INFORMATION

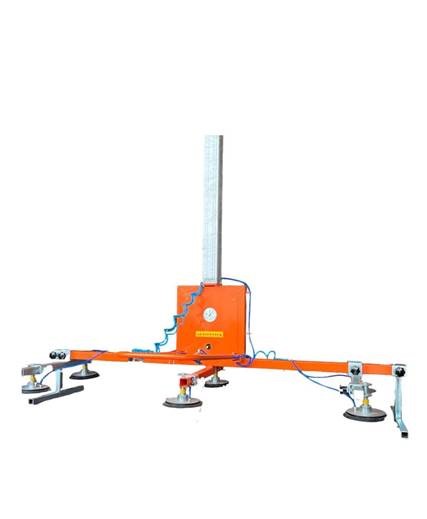

- 150 kg. Capacity vacuum lifter
- Works with 6 Bar compressed air
- Manipulator holds, releases, lowers, lifts the panel
- The suction cup system is manufactured to hold smooth and rough surfaces without any problems.
- Suction cup system can telescopically grow and shrink horizontally and longitudinally
- Maximum size to be held 4000 mm x 1200 mm
- The minimum size to be kept is 1000 mm x 500 mm
- Holds and releases betopan in 3 seconds
- 150 kg. It lifts and lowers the concrete panel weighing 1200 mm
- Lowering and lifting speeds are adjustable
